A hand pallet truck (or pallet jack) is a manual, entry-level material handling unit designed to lift and transport palletized loads across short distances on smooth, flat surfaces.
Key Characteristics & Specifications
| Feature |
Standard Range |
| Load Capacity |
2,000 kg to 5,000 kg (2–5 metric tons) |
| Lift Height |
~85 mm lower position to ~200 mm raised position |

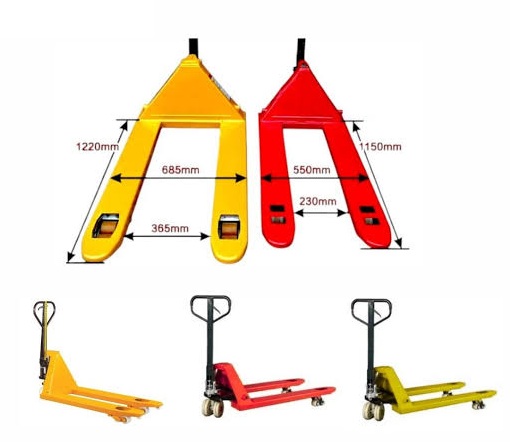

| Fork Dimensions |
Standard 1150 mm length × 550/685 mm overall width |
| Wheel Material |
Polyurethane (quiet, floor-protective) or Nylon (hard, low rolling resistance) |
Advantages
-
Low Cost: Negligible initial investment compared to motorized powered pallet trucks or forklifts.
-
Low Maintenance: Minimal moving parts; requires only periodic lubrication and hydraulic seal checks.
-
Maneuverability: Highly compact turn radius ideal for tight warehouse aisles, delivery trucks, and backrooms.
-
Zero Emissions & No Power Required: Operation is 100% mechanical, requiring no battery charging or fuel.
