A carton box strapping machine applies high-tensile plastic straps (usually Polypropylene or Polyester) tightly around corrugated boxes to reinforce, seal, and bundle them for transit. It replaces or complements packing tape by providing structural integrity for heavy loads and preventing box burst.
Key Benefits
-
Structural Reinforcement: Prevents cardboard seams from splitting during rough handling or stacking.
-
Tamper Evidence: Straps cannot be removed and replaced without visible damage, deterring theft.
-
Efficiency & Speed: Secures a box in 1.5 to 3 seconds using heat-friction welding, drastically faster than manual taping.
-
Cost Efficiency: Reduces total reliance on heavy packaging tape and film wraps.
Types of Strapping Machines
| Machine Type |
Operation Level |
Speed / Throughput |
Best Used For |
| Semi-Automatic |
Operator manually wraps strap around box and feeds it into slot |
~10–15 straps/min |
Low-to-medium volume, varied box sizes |

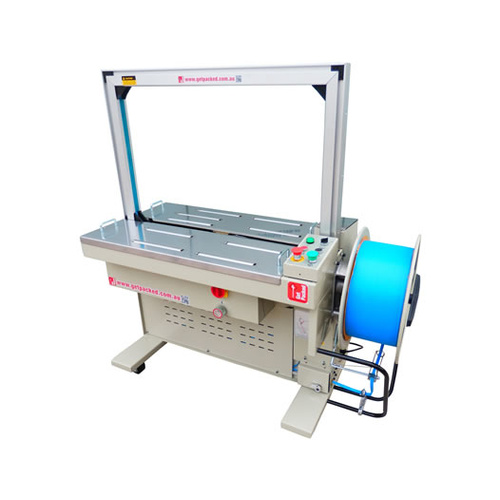

| Fully Automatic (Arch) |
Operator places box under an arch; machine senses box and straps automatically |
~25–50 straps/min |
High-volume production lines, standardized box sizes |

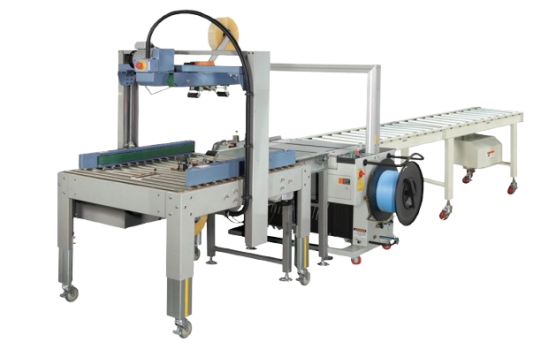

| Fully Automatic Inline |
Integrated into conveyor belt; sensor detects box and straps without human intervention |
~50+ straps/min |
High-speed automated fulfillment centers |
