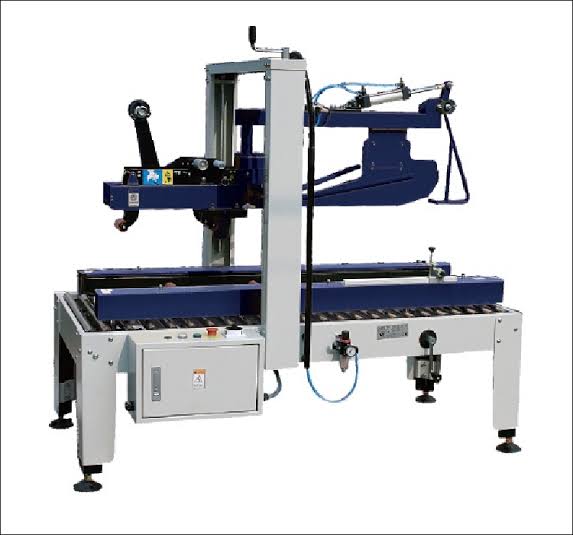

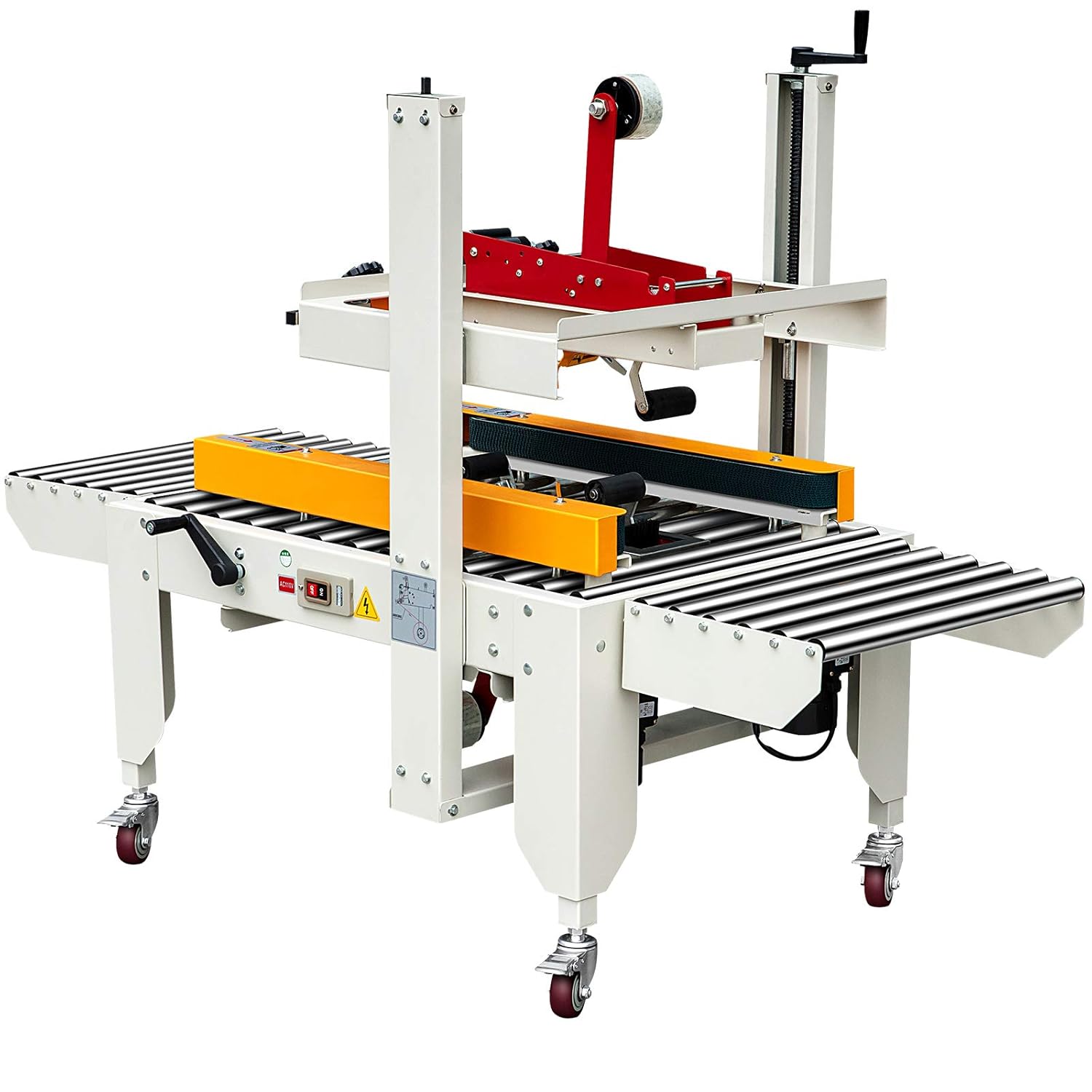

A carton box taping machine (or case sealer) automates the process of sealing the top and bottom flaps of corrugated boxes using pressure-sensitive adhesive tape (BOPP or paper tape).
Core Value Proposition
-
Throughput: Seals 15–30 boxes per minute (compared to 3–5 manually).
-
Consumable Savings: Cuts tape waste by 20–30% through precise cutting and standard overlap.
-
Structural Consistency: Applies uniform pressure across the seam, preventing weak seals that lead to transit damage.
Machine Types
| Type |
Best Used For |
Operating Mechanism |
| Semi-Automatic (Uniform) |
High-volume runs of same-size boxes |
Operator manually folds flaps and feeds box; height/width set manually. |
| Semi-Automatic (Random) |
Mixed-size box streams |
Automatically adjusts width and height for each incoming box; operator folds flaps. |
| Fully Automatic |
Continuous conveyor production lines |
Automatically folds top flaps, adjusts dimensions, and seals without human intervention. |
Key Technical Features
-
Drive Mechanism: Side belts for tall/narrow boxes; top-and-bottom belts for heavy or wide boxes.
-
Tape Heads: Standard 2-inch (48mm) or 3-inch (72mm) cartridges, equipped with wiper rollers and quick-cut blades.
-
Safety Controls: Emergency stop buttons, blade guards, and safety interlocks for conveyor integration.
